3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine

Brand Name : LIANDA

Model Number : LDZL-800

Certification : CE,SGS,ISO9001

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T, L/C, Western Union

Delivery Time : 45 working days

Packaging Details : Factory standard package or customized package

Voltage : 380V 50HZ 3Phase or customized

Warranty : 1 Year

Application : Plastic Recycling

After-sales service provided : Engineers available to service machinery overseas

Production capacity : 300-1000kg/h

Material processed : Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc

Plastic type : Plastic film/bag

Final product : Clean Plastic Granules

Product name : plastic recycling machine,waste pp pe bags washing granulating recycle line,PP Jumbo bag recycling line,PP Raffia bag pelletizing line

Keywords : Plastic bag recycling machine line, waste plastic recycling machine, PP Jumbo bag recycling machine, PP/PE Film recycling equipement

Material : Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc

Motor : Wannan Motor,Siemens or customized

Contact Now

Raffia bag/PP Jumbo bag/ Non-woven bag Granulating Line

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine




LIANDA  Design



1. Applied for

  • Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc



  • The production line is made up of
No Machine Name Quatity (set)
1 Belt conveyor 1
2 Forced feeder 1
3

Single Screw Extruder

(Single or Double step )

 1
4 Hydraulic screen changer (Double working position no need stop machine while change the screen ) 1
5 Water-ring pelletizing system 1
6 Dewatering machine 1
7 Vibrating sieve 1
8 Air conveying system + storage 1
9 Control system 1
  • Machine model
Model LD-100/90 LD-120/100 LD150/120 LD200/160
SJ-100 SJ90 SJ120 SJ100 SJ150 SJ120 SJ200 SJ160

Screw diameter

(mm)

 100 90 120 100 150 120 200 160
L/D 25-33 8-10 25-33 8-10 25-33 8-10 25-28 8-10

Output

(kg/h)

 100-160 100-160 150-200 150-200 250-350 250-350 400-600 400-600


3.Working processing


Plastic Film Granulating Line Capacity (300-1000kg/h)
Detailed technical parameters, please contact us
1 Belt conveyor 1unit
  Belt conveyor will convey the material to Forded feeder.
Motor brand: Siemens Bade

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
Frequency speed control
Install the anti-sliding partition bar on the surface of the adhesive tape
Adopt PVC Rubber belt

Adjust the belt elasticity freely

Install the shift truckle on base, it is flexible & convenient
2 Forced feeder 1unit


LIANDA patent design




3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine

Frequency speed control

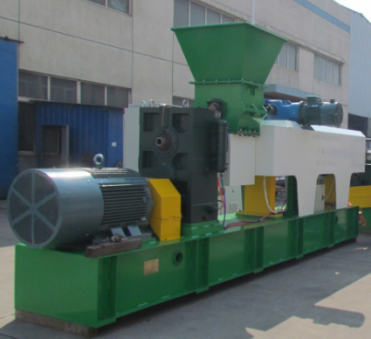

3 Single Screw Extruder (First step ) 1unit


Screw material: adopt 38CrMoAlA,
With Nitrided treatment

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
  Special design on screw structure especially for washed film ( wet film )
  Feeding part adopt electrical magnetic heating
  After feeding part adopt electrical heating
  Adopt fan cooling
4 Hydraulic screen changer system 1set
  Double working position

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine


Hydraulic plate form screen changer

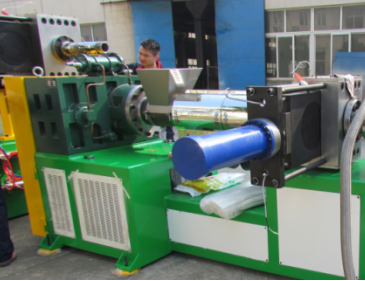

4 Single Screw Extruder (Second step) 1unit


Screw material: adopt 38CrMoAlA,
With Nitrided treatment

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
  Special design on screw structure especially for washed film ( wet film )


Adopt electrical heating


5 Hydraulic screen changer system 1set
  Double working position

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
  Hydraulic plate form screen changer
6 Water-ring pelletizer system (2 types for choosen) 1set
  Vertical pelletizer system

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
  Horizontal pelletizer system

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
7 Vertical dewatering machine 1unit













 To dry Pellets

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
8 Air conveying system + Storage 1unit













High pressure blower











3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
9 Electrical cabinet 1set


Adopt independent operation panel for easy operation
With English vertion

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
  With cooling fan inside
  Temperature contoller: Omron
  Current protective of motor
  Over temperature protective of motor
  Over pressure protective of screw


3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine


3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
