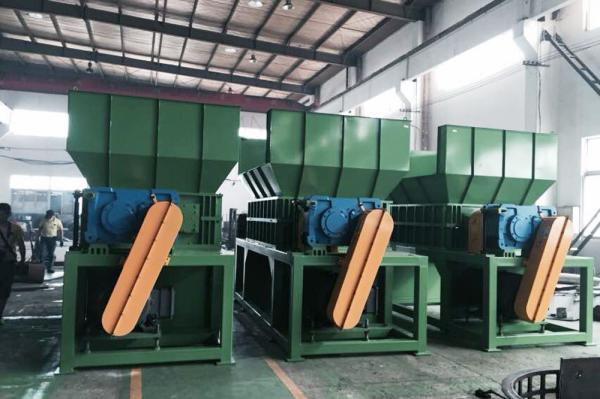

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Product Categories
LIANDA Machinery Co.,Ltd.
Contact Now

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Brand Name : Lianda

Certification : CE，ISO9001

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 100 sets/year

Delivery Time : 5~8weeks

Packaging Details : film packing

Applied : plastic container, plastic drum,etc...

Voltage : Customized

Warranty : 12 months

Service : 24 hours

Contact Now

Double shaft shredder machine,plastic container shredder,plastic drum shredder,industrial plastic shredder,solid waste

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

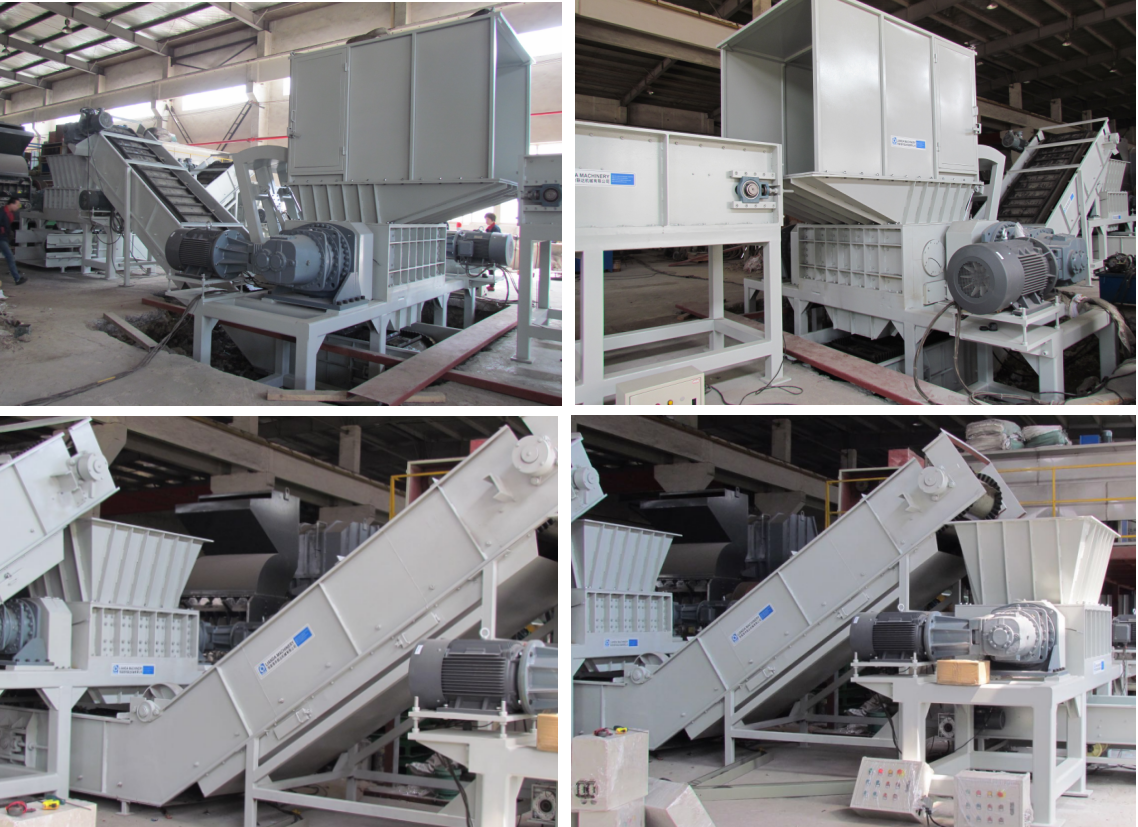

LIANDA Design





45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Metal material:

Aluminum material,motor shell,oil drum, waste vehicle crust,ferrous waste, waste steel plate etc

Waste tires:

Car tire, truck tire,OTR tire etc

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Electronic waste:

Waste fridge,TV, Washer etc

Plastics:

Plastic drums,packing case, plastic pallet, plastic can etc

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

Metal drum



 Industrial waste

Machine model

Model

Rotating

diameter

(mm)

Main shaft speed

(rpm)

Blade Thickness

(mm)

Blade quantity

(pcs)

Cutting chamber

(mm)

Motor power

(kw)
LD-800 320*2 20 40 22 800*650 18.5*2
LD-1000 360*2 20 50 20 1000*650 22*2
LD-1200 420*2 20 50 29 1200*800 45*2
LD-1500 514*2 20 50 32 1500*1000 110*2



Machine Details

1

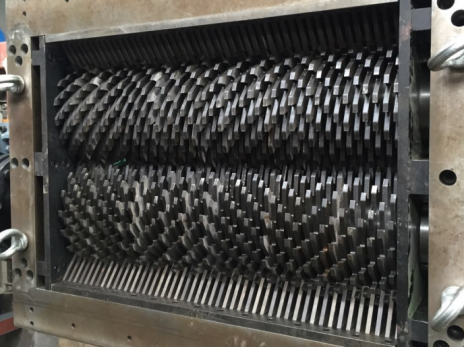

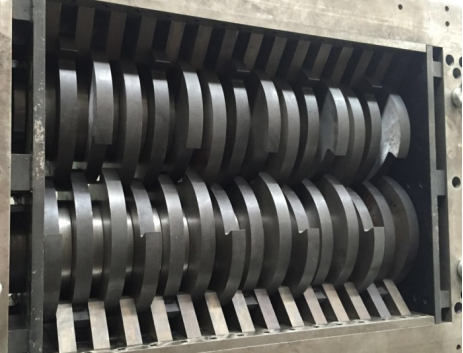

Components of double shaft shredder

  • Rotary blades: cutting materials
  • Spacer: Control the gap of rotary blades
  • Fixed blades: prevent materials from wrapping around the blade shaft

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
Different material adopt different blade rotor model
German imported blade material have strong impact resistance, and broken metal knives will not break.
Both the inner hole of the tool and the spindle surface adopt a hexagonal design to realize the uniformity of the blade force.

The blades are arranged in a spiral line to realize efficient cutting.






2

The bearing is four-fold sealed, effectively waterproof and dustproof.







45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
Split bearing seat design to facilitate bearing and rotor maintenance
3

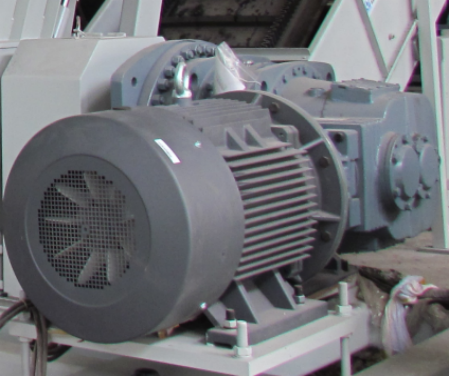

Adopt planetary gear reducer, smooth running and shock resistant













45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
4

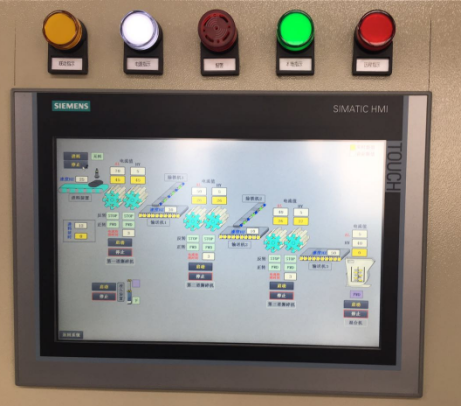

Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;













45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
5 The equipment has passed CE certification and complies with EU safety standards



45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
